Description

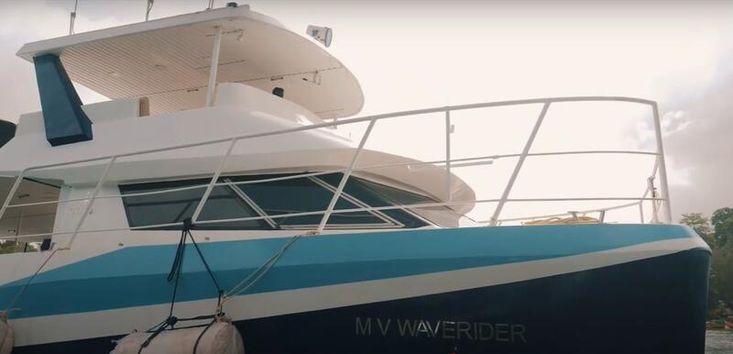

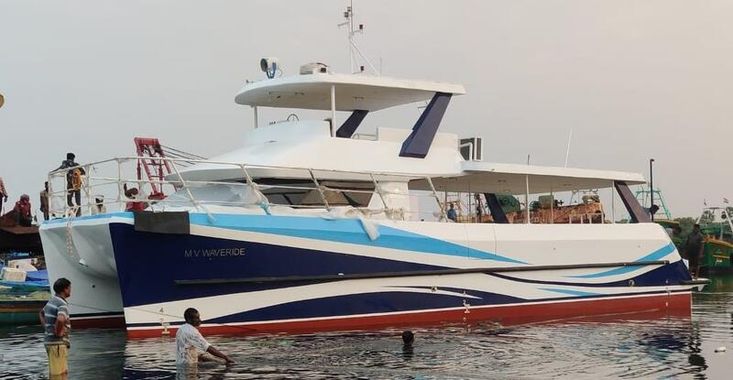

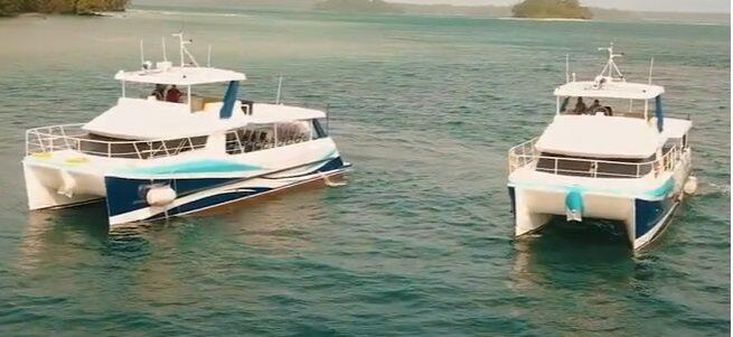

This 15m passenger catamaran is FRP construction and has a mixture of internal and external seating and is ideal as a day tourist vessel or ferry. Passengers: 50 Crew: 4. Main Engines: 2 x Yanmar 6MP. 140Hp, 2200RPM. Maximum Speed: 12 knots. Cruising Speed: 8 knots.

Specifications

Accommodation

Passengers: 50
Crew: 4

Construction

Breadth Of Each Hull: 1.8m
Depth: 2.90m
Able to afford up to 2.5 Mtr wave height.

Canopy structure:
Canopy Structure Is Made Out Of FRP Composites With SS Piping Support.

Deck Fittings:
Anchor – SHHP anchor with 50 kg
Winch – with required motor winch will be fixed on deck to operate the Anchor load.
Rope/ Chain – combined of 2-meter chain with 30-meter rope will be provided for anchor.
Mooring Ropes and Towing Ropes will be provided as per drawing
Bollard – 4 nos of aluminium Bollard fixed.
Rub rail – 100 mm rubber rub rail fixed all the way of hull on both sides will be fixed through SS bolts and nuts.
Seats with UV Resistant Cushion.

PAINTING
Hull outside, below waterline
2 coats : Primer: 150 microns DFT
1 coat : Sealer Coat: 100 microns DFT
2 coats : Antifouling: 100 microns DFT
SUPER STRUCTURE OUTSIDE
2 coats : Epoxy Primer: 150 microns DFT
2 coats : TOPCOAT: 85 microns DFT

Navigation Equipment

VHF
GPS
Compass & Binocular
Radar, Echo sounds
Rudder angle indication
Navigations Search light
SART & AIS type B

Engine(s)

Main Engines: 2 x Yanmar 6MP 140Hp, 2200RPM
Gear Box: DONG-I Model DMT90A Ratio 2.06:1
Genset: 2X 12Kva
Sullage: 1x 500L

Tanks
Fuel tank – Made out of Marine grade aluminium with IRS approved certificate.
water tank + pump
Sewage tank pump

Electrics

Electrical & Plumbing
Wiring Cables- all IACS approved cable will be fixed for electrical wiring
Panel board – IACS type approved panel fixed.
Lights – LED lights fixed on top of deck inside and hull and wherever necessary.
Battery – 4 Nos of 200 AH capacity Litium battery will be attached.
Sockets / Switches
Electrical Toilet fittings / 2nos
Piping / Pump as approved drawing.
Auxiliary
5 x CCTV Install.

Safety Equipment

Fire Fitting equipment:
Fire extinguisher (powder 5kg DCP type) – qty 6 nos Type approval.
Fire Alarm
Fire hydrant 32NB
Fire hose 32NB, 60 ft long hose with nozzle spray jet – 1 set
Sand Scoop ( 0.075 Cum )
Buckets (2 with LANYARD) – 2 nos

Lifesaving Appliances:
Life jacket Adult – 55 qty
Life jacket Child – 6 qty
Life buoy(2nos)
Rope S.I light
Life raft (2nos) – 25-person capacity will be fixed fore deck part.

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
