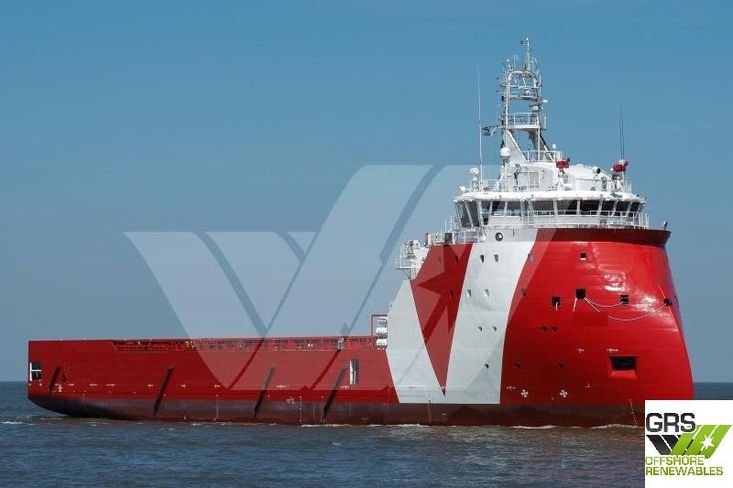

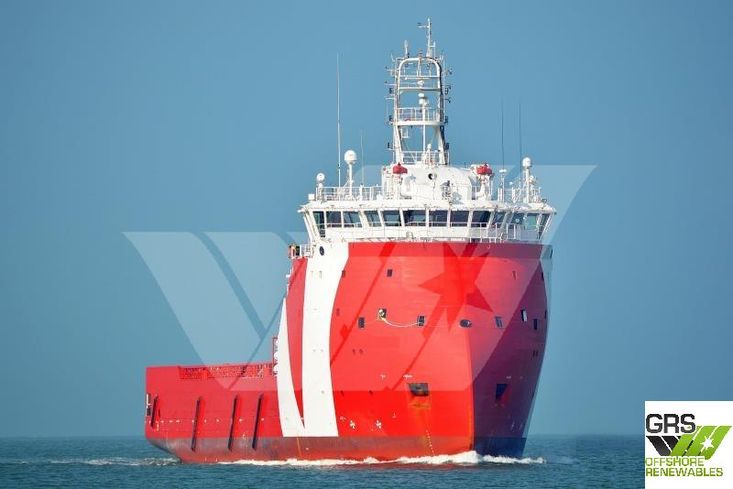

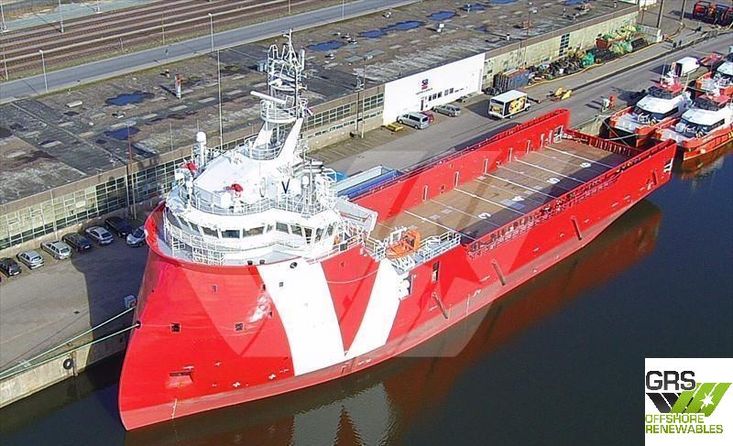

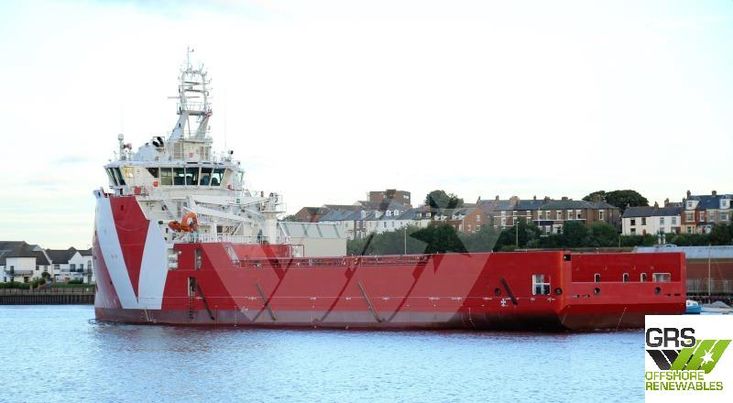

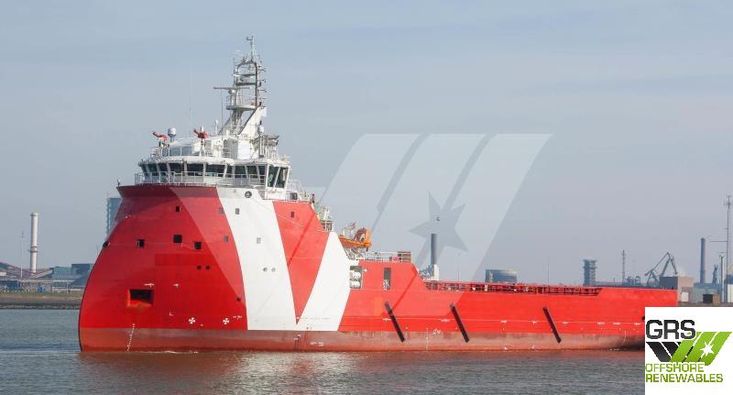

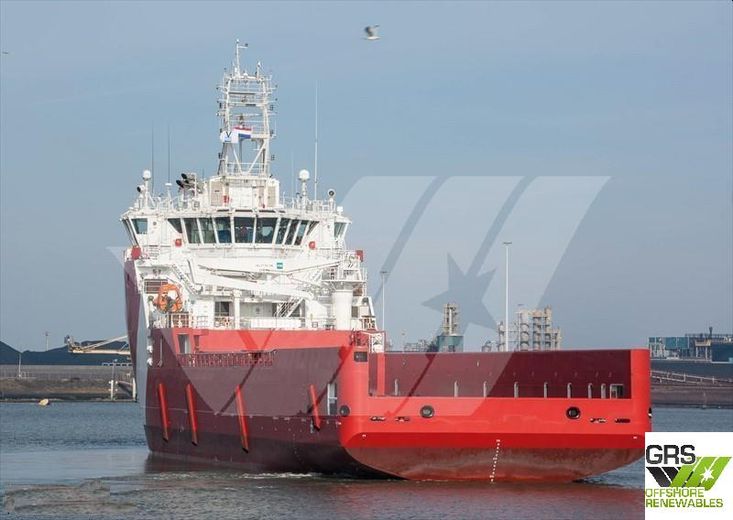

Description

LOA 83.4 m
Beam 18 m
Draft 6.7 m

Built in year 2016
Design is : Ulstein PX121
Class : Lloyd's Register
Flag : Norway (NIS)
Gross Tonnage of 3,638 and Nett Tonnage of 1,295

Free Deck area about 850m² with a deck strength of 10 metric tonnes per square meter
Fire Fighting System of type FiFi 1 installed
1 Crane / Gear installed with a max lifting capacity of 3 tons
Deadweight : 4,122 metric tonnes
Capable of supplies of 1,464m³ Fuel Oils, 150m³ Methanol, 1,035m³ FW, 1,294m³ Brine and 255m³ Dry bulk

Total 26 berths
14 cabins with 1 berth
6 cabins with 2 berths

Speed : 10 knots
Engines : 4 x Caterpillar / Caterpillar Inc 3512C, 5,240 kw, 1,800 rpm, Propellers 1 Azimuth Elec. Dr. (Port Side) + 1 Azimuth Elec. Dr. (Starboard)
Auxiliaries Engines : Bowthruster + Sternthruster (2 Bow 880kw + 2 Stern 1,600kw)

Specifications

Engine(s)

4 x 5,240 kw, 1,800 rpm, Caterpillar / Caterpillar Inc 3512C,
Propellers: 1 Azimuth Elec. Dr. (Port Side) + 1 Azimuth Elec. Dr. (Starboard)
