Description

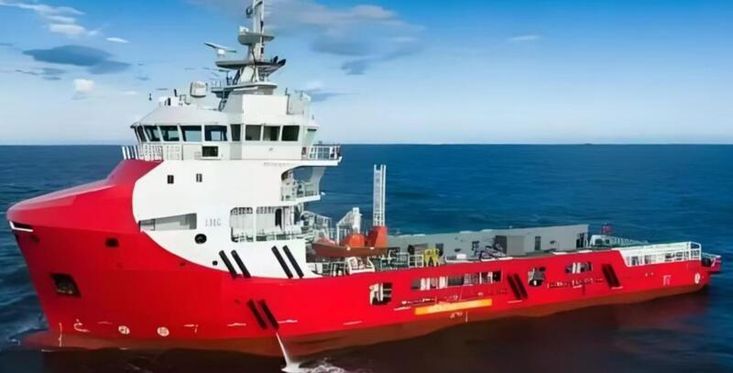

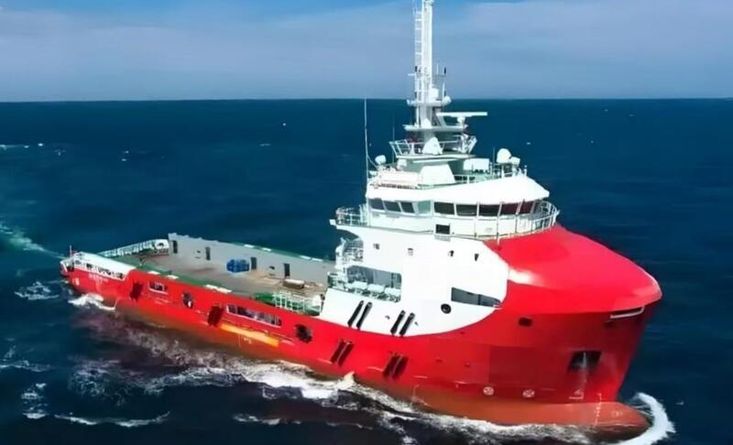

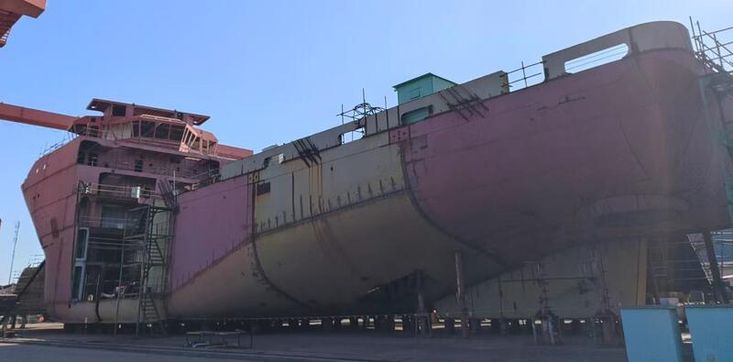

Two 80mt Hybrid-MPSV currently under construction, with delivery in 2026. ABS Class. Displacement: 5,800 mt. Class Notations: ABS: GL ?1A1, Offshore Support Vessel (HNLS,OSRC1, SSR,GRC-19,FFV1) SPS, E ?AMS,ACCU,DPS-2,UWILD,ENVIRO,GP,. Maximum: 20t/day @ 13 knots. Cruising: 10t /day @ 10 knots. Economical: 8t /day @ 8 knots.

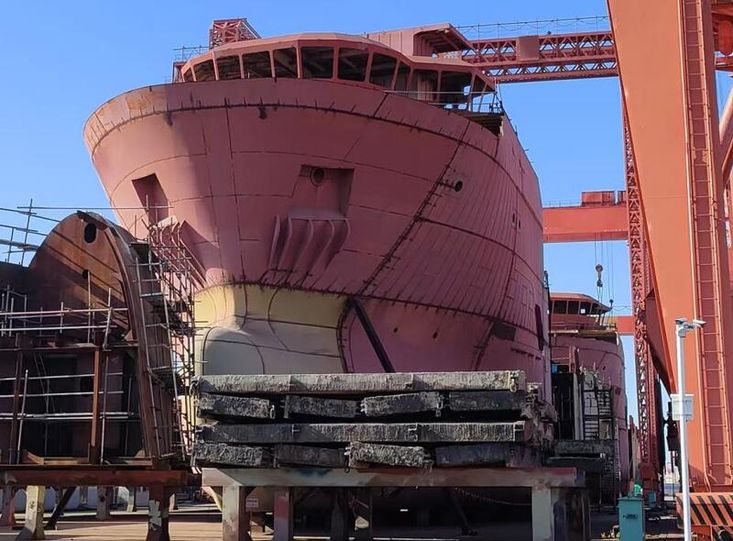

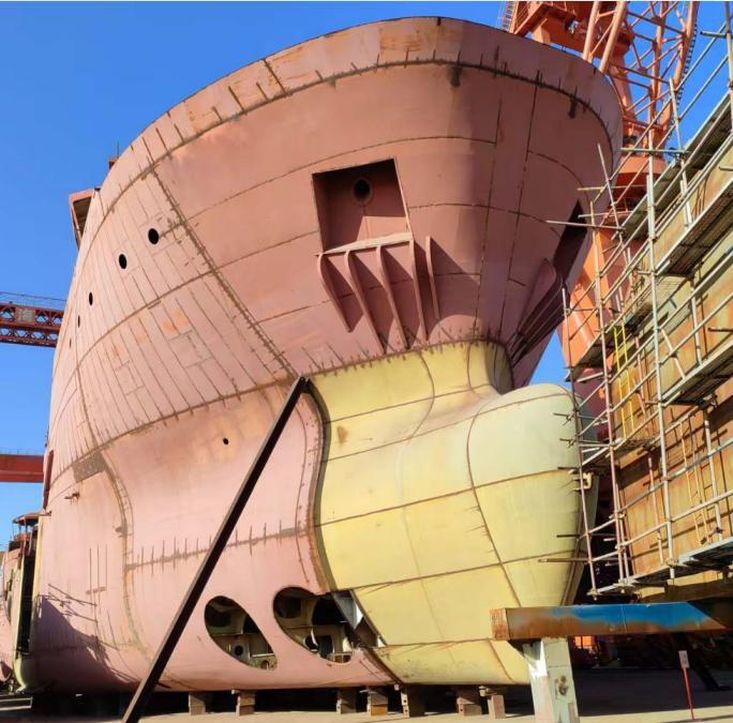

Date Launched: 2026 (under construction) Length: 80m (262ft 5in) Beam: 18m (59ft) Draft: 6.8m (22ft 3in) Location: China

Specifications

Construction

Length, Overall: 80m
Beam: 18m
Depth: 8.2 m
Maximum Draft: 6.8 m
Light Draft: 2.8 m
Minimum Height: 25 m
Freeboard: 1.3 m
Displacement: 5,800 mt
Deadweight: 3,650 mt

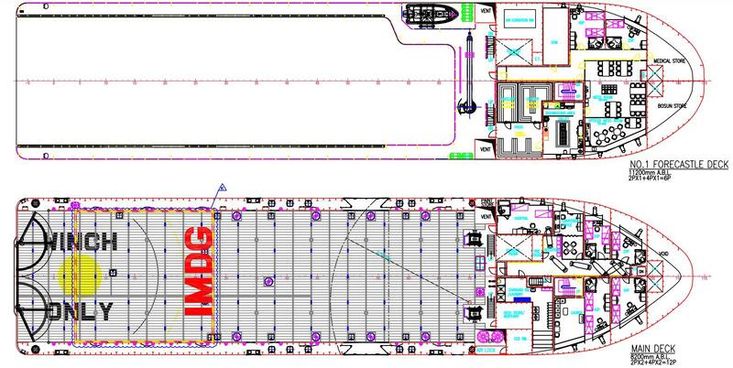

Clear Deck Space: 50 x 16 m
Clear Deck Area: 800 m2
Deck Strength: 7.5 t/m2
Class Notations: ABS: GL ?1A1, Offshore Support Vessel (HNLS,OSRC1, SSR,GRC-19,FFV1)
SPS, E ?AMS,ACCU,DPS-2,UWILD,ENVIRO,GP,

Deck Cargo: 3,650 t
Fuel Oil: 1,183 m3
Potable Water: 727 m3
Mud/Brine: 197 m3
Drill/Ballast Water: 1,088 m3
BaseOil 271 m3
Lub Oil : 10 m3
MEG/ORO 813 m3
Methanol tank 250 m3
Fire Fighting Foam: 21 m3
Oil Dispersant: 21 m3
Dirty Oil: 20 m3
Bulk Tanks (4 tanks): 320 m3

Navigation Equipment

Radar(s): 2
Depth Sounder: 1
Gyro Compass: 3
Doppler Log: 1
Radio: 2 x VHF
Sat Com: INMARSAT-C

Engine(s)

Fuel Consumption Vs Speed :
Maximum: 20t/day @ 13 knots
Cruising: 10t /day @ 10 knots
Economical: 8t /day @ 8 knots
Range @ 8 Knots: 8,750 nm

Transfer Rates :
Fuel Oil: 150 m3/h @ 80 m
Fresh Water: 150 m3/h @ 80 m
Drill/Ballast Water: 150 m3/h @ 80 m
Bulk: 57 m3/h @ 57 m
Liquid Mud: 75 m3/h @ 90 m
Base Oil: 35 m³/h @ 82 m

Safety Equipment

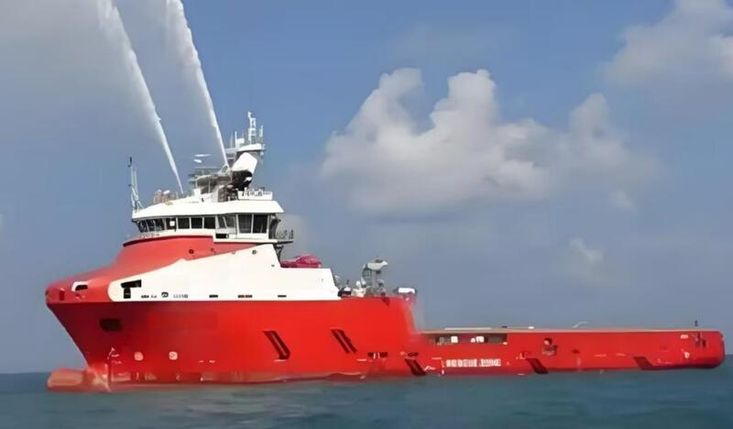

Firefighting: FiFi-II 2*1790m³
Dynamic Positioning: DP-2
Ref. Systems: 2 x MRU; 2 x DGPS
1 x Microwave-based; 1 x Laser-based
Water Maker: 2 X 10 T/DAY
Mud Circulation System/
Mud Mixers: Yes/ Yes
Rescue Boat: 6 MAN SOLAS

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
