Description

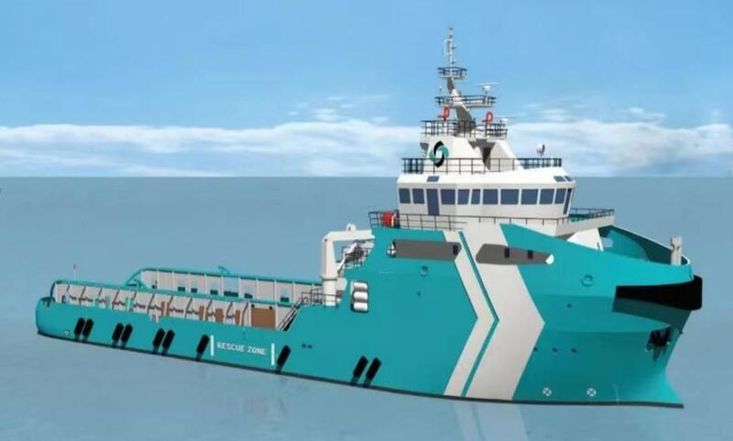

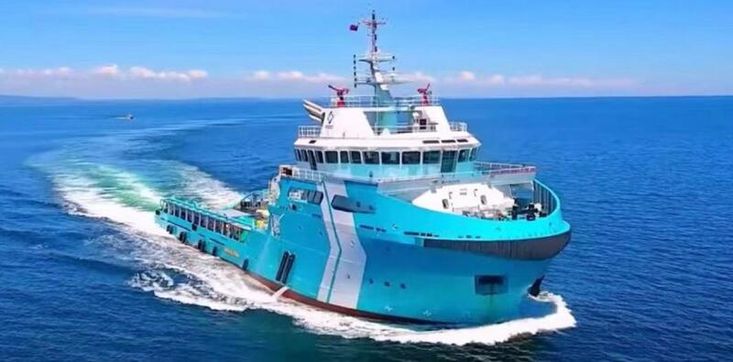

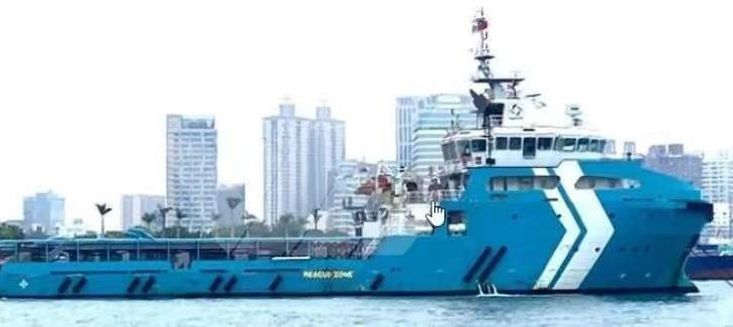

Two AHTS currently under construction, with delivery in June 2026. DNV Class. Displacement: 3,800 mt. Clear Deck Space: 40 x 14 m. Clear Deck Area: 420 m2. Maximum: 25t/day @ 15 knots. Cruising: 12t /day @ 10 knots. Rescue Boat: 6 MAN SOLAS.
Date Launched: June / 2026 Length: 68m (223ft) Beam: 16m (52ft 5in) Draft: 5.5m (18ft) Location: China

Specifications

Construction

LOA: 67.8m
Beam: 16m
Depth: 6.8 m
Maximum Draft: 5.5 m
Light Draft: 2.8 m
Minimum Height: 25 m
Freeboard: 1.3 m
Displacement: 3,800 mt
Deadweight: 2,000 mt
Clear Deck Space: 40 x 14 m
Clear Deck Area: 420 m2
Deck Strength: 5.5 t/m2
Deck Cargo: 600 t
Fuel Oil: 580 m3
Potable Water: 460 m3
Mud/Brine: 450 m3
Drill/Ballast Water: 690 m3
Bulk Tanks (4 tanks): 186 m3
BaseOil: 130 m3
Lub Oil: 10 m3
Dirty Oil: 10 m3
Oil Dispersant: 10 m3
Fire Fighting Foam: 15 m3

Equipment

Firefighting: FiFi-1
Dynamic Positioning: DP-2
Ref. Systems: 2 x MRU; 2 x DGPS
1 x Microwave-based; 1 x Laser-based
Water Maker: 2 X 10 T/DAY
Mud Circulation System/
Mud Mixers: Yes
Rescue Boat: 6 MAN SOLAS

Navigation Equipment

Radar(s): 2
Depth Sounder: 1
Gyro Compass: 3
Doppler Log: 1
Radio: 2 x VHF
Sat Com: INMARSAT-C

Engine(s)

Fuel Consumption Vs Speed
Maximum: 25t/day @ 15 knots
Cruising: 12t /day @ 10 knots
Economical: 8t /day @ 8 knots
Range @ 8 Knots: 8,750 nm

Fuel Oil: 150 m3/h @ 80 m
Fresh Water: 150 m3/h @ 80 m
Drill/Ballast Water: 150 m3/h @ 80 m
Bulk: 57 m3/h @ 57 m
Liquid Mud: 75 m3/h @ 90 m
Base Oil: 35 m³/h @ 82 m

Certification

Class Notations: ABS: GL ?1A1, SF, E0, TUG, SUPPLY VESSEL l, DYNPOS-AUTR, FiFi I,DPS-2,SPS,GP, Offshore Support Vessel

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
