Description

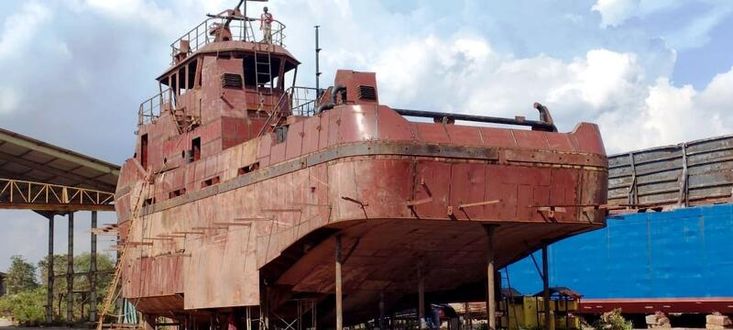

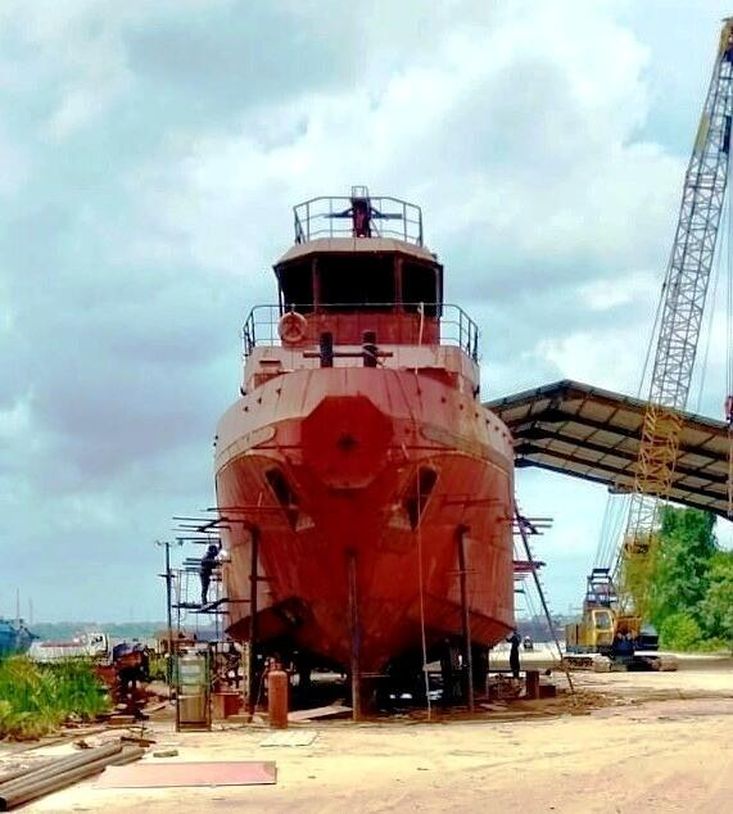

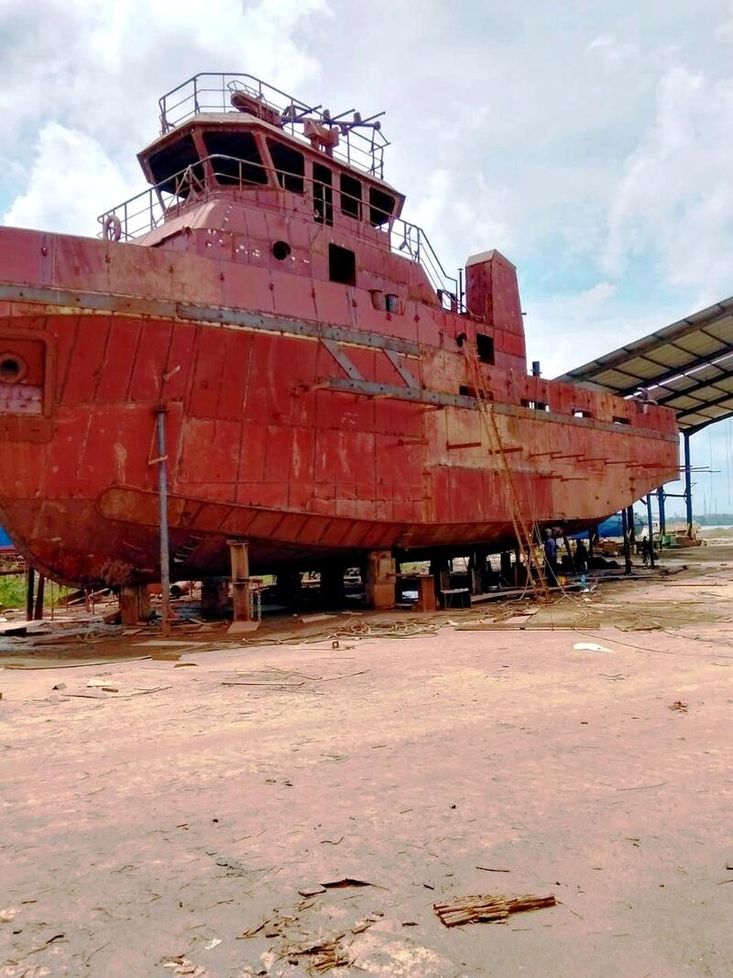

This 28m Tug is under construction and she will be ready for delivery in January 2026. Class: BKI. Flag: Indonesia. Port of Registry: Samarinda. Main Engine: 2 x Weichai 8170ZC1000-5. Service Speed: 11-12 knots.

Specifications

Accommodation

Crew Capacity: 12 persons
Crew Cabins: 1 cabin (10 persons), 2 single cabins in bridge (1 person each)
Mess Room: 1 room
Galley: 1 room
Store: 1 room
Toilets: 2 room
Navigation room: 1 room

Construction

Flag: Indonesia
Port of Registry: Samarinda
LBP: 25.46m
Depth Moulded: 4.30m
Gross Tonnage: 296 (subject to official BKI tonnage measurement)
Net Tonnage: 89 (subject to official BKI tonnage measurement)
Deadweight: 247.3 tons

Navigation Equipment

Marine GPS
Marine Compass
Marine radar
Radio VHF

Engine(s)

Propulsion & Performance
Main Engine: 2 x Weichai 8170ZC1000-5
Power: 2 x 735 kW @ 1500 rpm
Propeller: FPP (Fixed Pitch Propeller)
Service Speed: 11-12 knots

Auxiliaries
Towing Winch: 1 set, Electro-hydraulic, capacity 30-ton, brake holding 50-ton with electromotor power pack
Anchor Windlass: 1 shipset, Electro-hydraulic, capacity 2.1-ton, 10 m/min, double type, for 21mm U22 grade chain
Anchors: 2 x Stockless Anchors, 420kg each
Anchor Chain: 10 shackles (275m), ø 21 mm, Grade U22
Towing Hook: 1 unit, capacity 30-ton, manual release
Towline: 180m, 6 x 24 wire rope with 7 cores, Break load 98 kn

Capacities
Forepeak Tank: 37.349 m3
FW Tank (P): 28.646 m3
FW Tank (S): 28.646 m3
Total = 94.641 m3 (~94.6 m3)

Fuel Oil Tank Capacity
F.O.T. 1P: 39.494 m3
F.O.T 1S: 39.494 m3
F.O.T 2P: 11.495 m3
F.O.T 2S: 11.495 m3
F.O.T 3P: 23.103 m3
F.O.T 3S: 23.103 m3
Daily Tank: 6.75 m3
