Description

General Specification

Designer : Van de Stadt
Builder : Tyler Boat Company (Tonbridge, Kent)
LOA :12.8m (42ft 0in)
LWL:9.14m (30ft 0in)
Beam :3.35m (11ft 0in)
Draft min:2.13m (7ft 0in)
Displacement :11000kg
Keel :Long Fin

Construction

GRP hull (epoxied) & superstructure
Cast iron moulded in keel
Hull constructed circa 1970 by Tyler, Tonbridge
Fitting out completed 1990

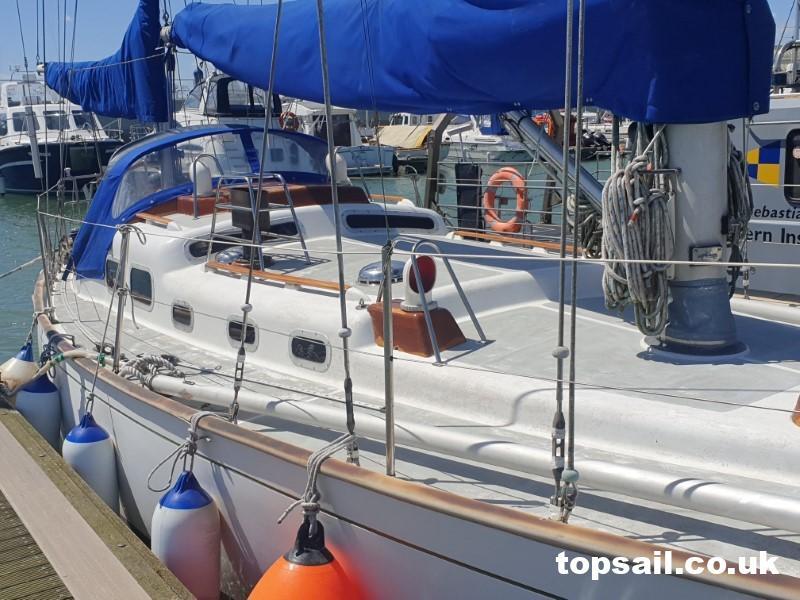

Solid GRP decks with non-slip side decks & cabin top
Self-draining cockpit
Square transom with self-steering gear fitted
Antifouled March 2024 (Red)
Last surveyed February 2024 (copy attached below)

Mechanical & Electrical

Vetus MP34, 4 cylinder 4 stroke turbocharged diesel engine @25Kw
Approximately 10 hours use, as new
Hydraulic Drive propulsion system
2 x ‘moulded in’ 109L tanks (total 218L)
GRP rudder with three-bladed bronze propeller
Single 12V 90Ah dedicated engine battery
2 x 12V 120Ah leisure batteries
Shore connection (temporary installation)

Rigging & Sails

Ketch Rig
Aluminium mast & spars
Mizzen mast replaced 2023
3 x 2 speed halyard winches
1 x single speed reefing winch
4 x 2 speed genoa & sheet winches
Mizzen & staysail winches
Braided rope halyards
Sails
Mainsail 33.5m2
Mizzen sail 10.86m2
Jib 8.82m2
Jib 29m2
Spinnaker (in store ashore)
2 x genoa (medium & oversized – both in store ashore)
Mizzen staysail (in store ashore)

Accommodation

7 berths in 3 cabins
V-berth in fore cabin

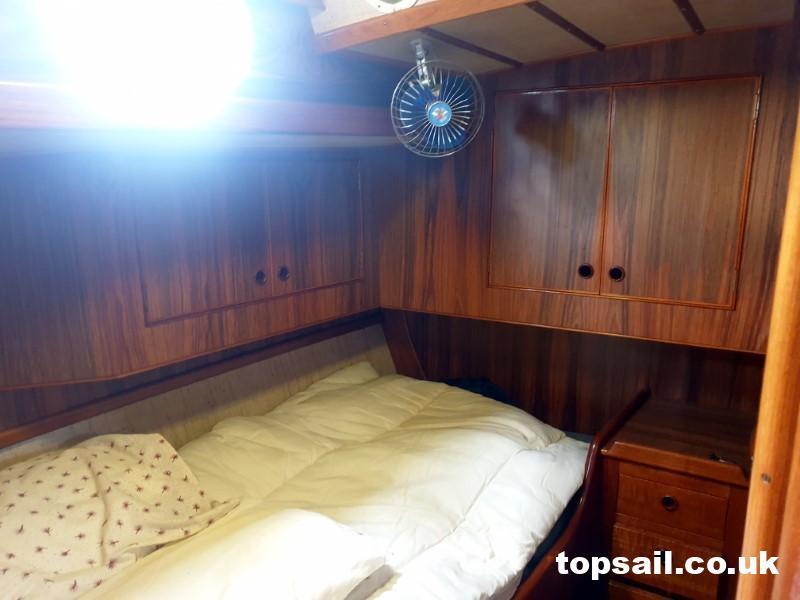

Centre cabin with small double

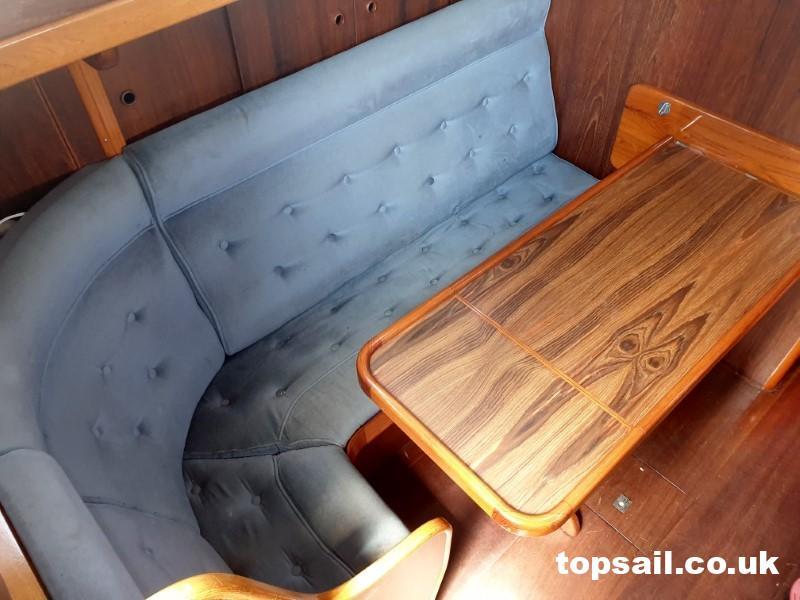

Saloon seat converts to single berth
2 further quarter berths in saloon

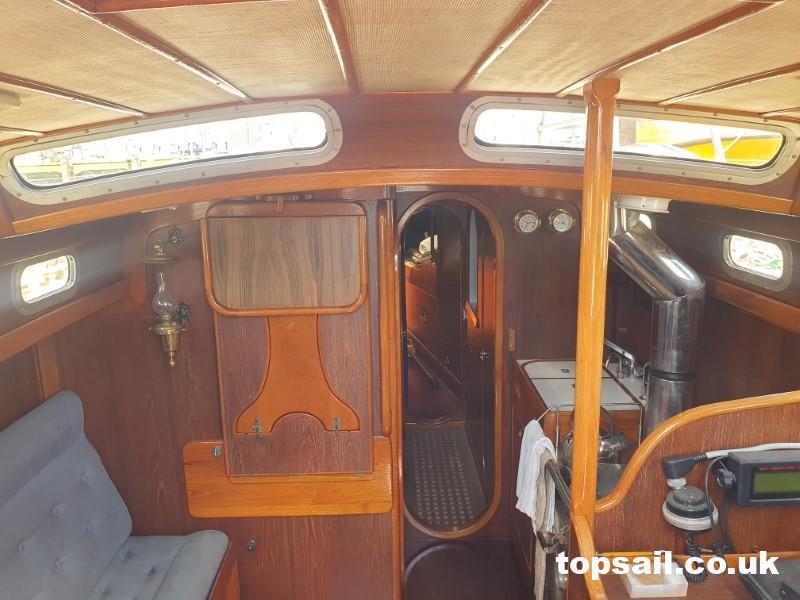

Interior fitted out in teak with iroko floor

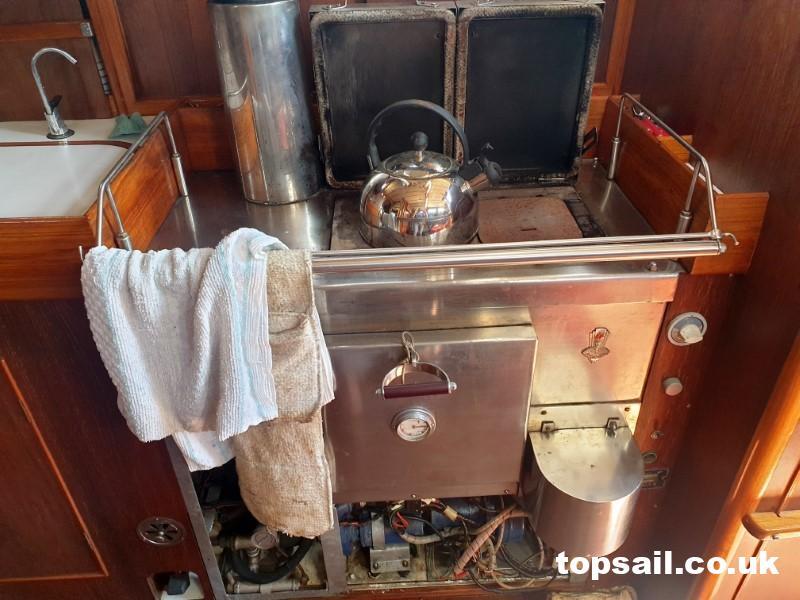

Galley with Perkins diesel ‘Galleymate’ cooker (2 hotplates & oven, needs servicing), hot & cold water pressure system, electric fridge and double sinks
455L ‘moulded in’ freshwater tanks under floor
2x 180L ‘moulded in’ freshwater tanks under lockers
Separate heads compartment with Lavac sea toilet (no holding tank), hot & cold pressurised water, shower
Hanging locker
Perkins Atom Jet heating (in need of attention)
1.85m (6ft 1in) headroom

Equipment

Navigation Equipment
Sailor Compact VHF & transceiver
Furano 1835 radar
Hand held GPS
2 x Magellan Nav1000 plus
Furuno GPS Navigator
Navtex Pro Plus
Seafarer type 501 depth sounder
NASA Stingray depth sounder (fitted 2020)

Safety Equipment
Emergency pyrotechnics
Self-inflating lifejackets
Horseshoe lifebuoy
Fire extinguishers (not guaranteed in date)
Fire blankets
Manual and auto bilge pumps

Deck Equipment
2 x CQR anchors 20.45kg & 11.3kg
Circa 30m 8mm galvanised chain
Lofrans twin barrel electric windlass
Stainless steel pushpit, pulpit and stanchions
Dodgers and spray hood
Fenders
Various warps
Tender
4 man inflatable tender with 4hp outboard (In store ashore)

Other Equipment
Cockpit cover
Portable Draper Suntom generator, 700 watt, 2-stroke unit
Yard storage cradle

Remarks:

Van de Stadt have an excellent reputation in Europe for good classic designs with beautiful lines that sail well and are built for serious coastal and offshore cruising in all weathers.

Bought by her late owner as a bare hull in the 1970’s and then painstakingly fitted out in the 1990’s by a highly regarded Norfolk craftsman and boatbuilder, she retains a highly finished and well laid out interior.

The 2024 survey found her to be in “generally good and structurally sound condition with no obvious major damage or defect” although it is acknowledged she would now benefit from some cosmetic attention and a general tidy up.
